DualTemp™ Layer ER Error

Choose your DualTemp fan

Click/tap the image that matches your DualTemp layer fan. The fan is usually located on the floor.


Gray DualTemp fan

How to resolve an ER error

ER is usually solved by making sure everything is plugged in properly. Set your remote down for now and let's get started!

  1. Unplug and re-connect the power cord to the fan. Make sure the flat side is facing up. The cord may buzz and cause ER messages if plugged in upside down.

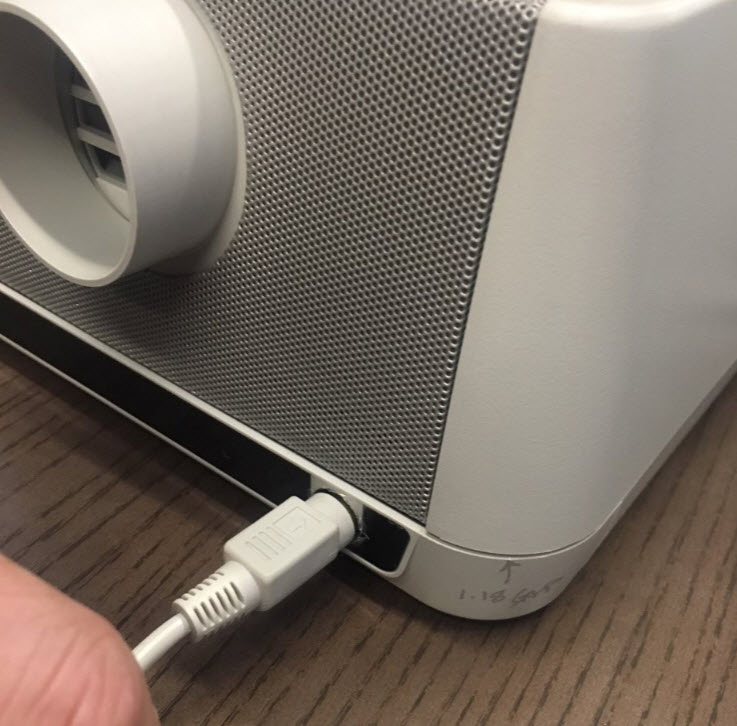

    Checking connections on a DualTemp fan.

  2. Unplug and re-connect the cord to the power brick. The power brick light will be green when getting power. If it is orange, re-check the connection to the fan. Contact us if the light is still orange after checking cord connection at the fan.

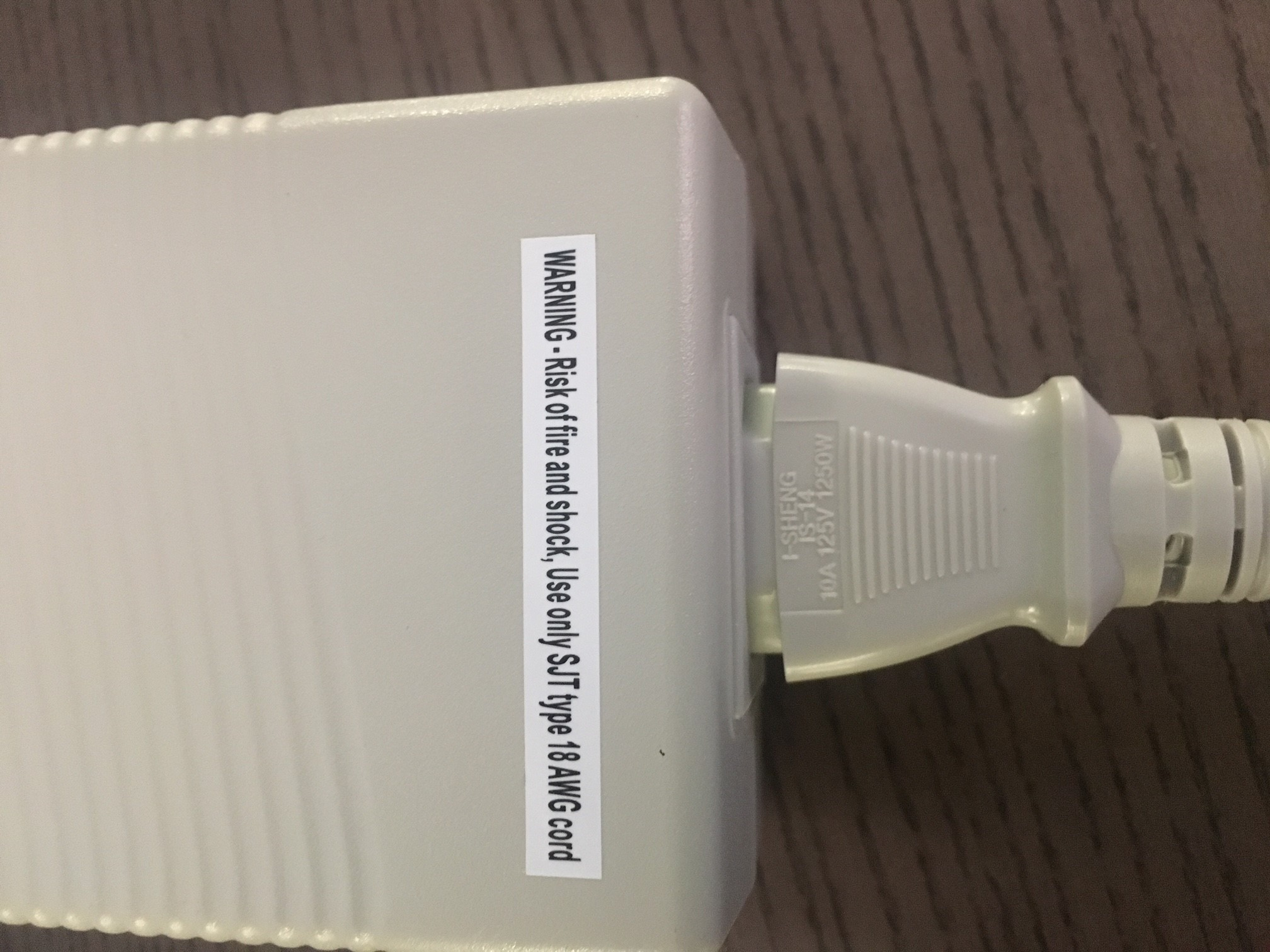

    A DualTemp layer power brick with its cord properly inserted.

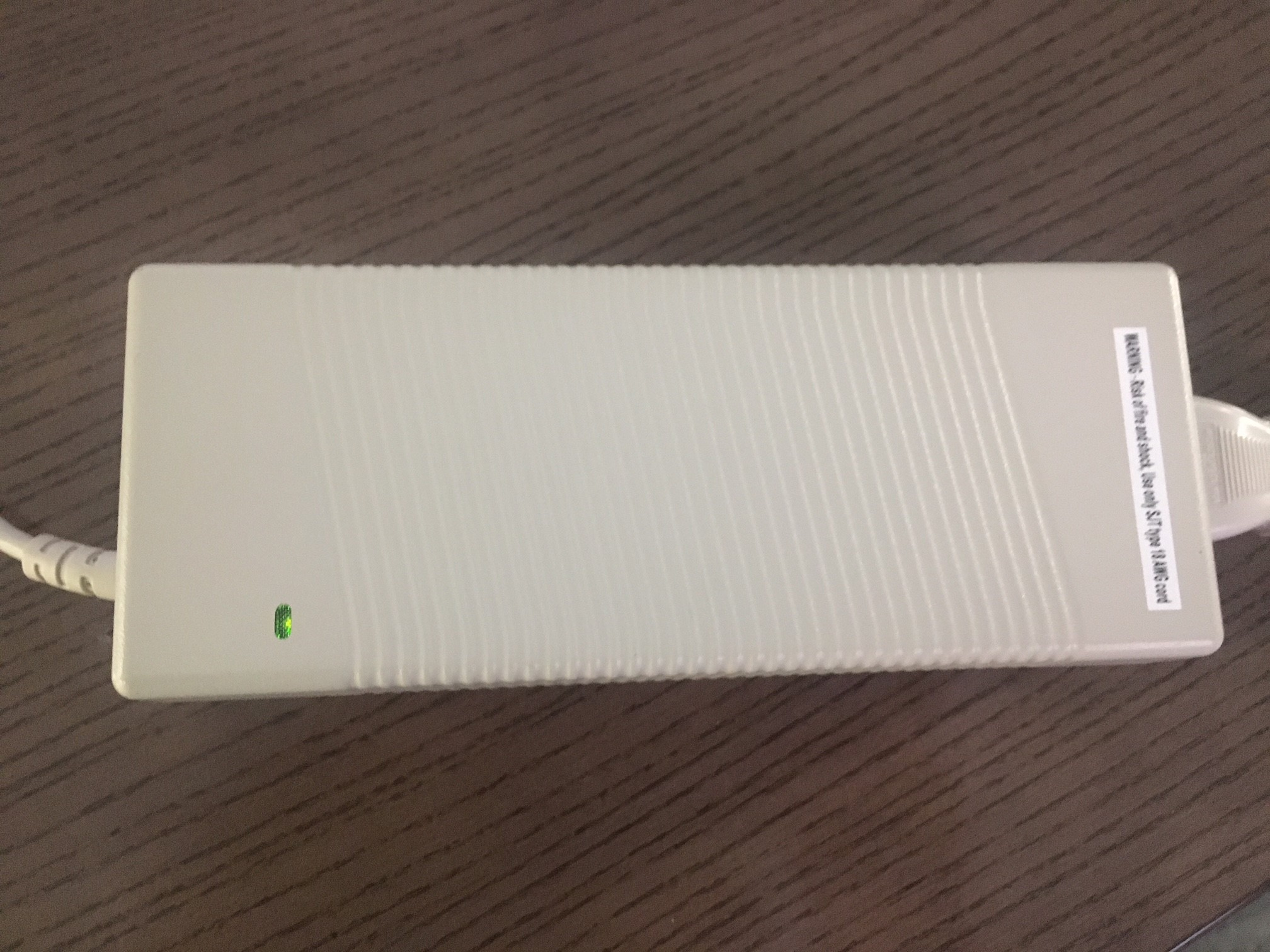

    A DualTemp power brick with a green light on.

  3. Make sure the power cord is plugged into a grounded outlet or surge protector.
  4. Unplug and plug the power cord into the outlet. If the light on the power brick doesn't come on, continue to the next step.
  5. Check the outlet for power. Make sure the outlet isn't controlled by a switch. If you're using a surge protector, make sure it is switched on.

If these steps did not resolve your issue, then we will need to reset your DualTemp remote.

Reset your remote

DualTemp 5 button remote

Two 5 button DualTemp remotes.

Press and hold the up and down arrow buttons until the System menu opens. You will see either “System” or “Rename Remote” at the top of your screen. Follow the steps based on what option you see.

System

Five screenshots showing how to navigate to the System menu on a DualTemp remote.

  1. Start on the System menu. If your remote fell asleep, press and hold the up and down arrows to reopen the System menu.
  2. Select Factory Reset.
  3. Unplug and plug in the DualTemp power cord as directed on the remote screen.
  4. Follow the remote instructions to name your remote.
  5. The fan will turn on when complete.

If you are still seeing an ER message, please contact us for further assistance.

Rename Remote
  1. Take the batteries out of the remote. Keep the batteries nearby.
  2. Unplug and plug in the DualTemp fan power cord.
  3. Within 60 seconds, put the batteries into the remote.
  4. Follow the remote instructions to name your remote. It’s normal for the fan to turn on when complete.

If you are still seeing an ER message, please contact us for further assistance.

White DualTemp fan

How to resolve an ER error

ER is usually solved by making sure everything is plugged in properly. Set your remote down for now and let's get started!

  1. Unplug and re-connect the power cord to the fan. Make sure the flat side is facing down. The cord may buzz and cause ER messages if plugged in upside down.

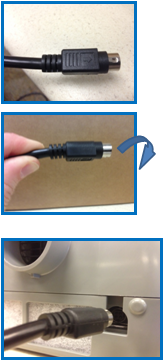

    Multiple images showing how to properly plug in a DualTemp power cord.

  2. Unplug and re-connect the cord to the power brick. The power brick light will be green when getting power. If it is orange, re-check the connection to the fan. Contact us if the light is still orange after checking the cord connection at the fan.

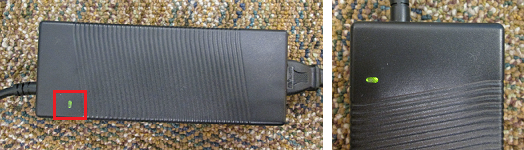

    Two images showing a DualTemp power brick with a green light on.

  3. Make sure the power cord is plugged into a grounded outlet or surge protector.
  4. Unplug the power cord from the outlet, and then plug it back in. If the light on the power brick doesn't come back on, go to the next step.
  5. Check the outlet for power. Make sure the outlet isn't controlled by a switch. If you are using a surge protector, make sure it is switched on.

If these steps did not resolve your issue, then we will need to rest your DualTemp remote.

Reset your DualTemp remote

DualTemp 3 button remote

Two three button DualTemp remotes.

  1. Take the batteries out of the remote. Keep the batteries nearby.
  2. Unplug and plug in the DualTemp fan power cord.
  3. Within 60 seconds, put the batteries into the remote.
  4. Follow the remote instructions to name your remote. It's normal for the fan to turn on when complete.

If you are still seeing an ER message, please contact us for further assistance.

DualTemp 5 button remote

Two five button DualTemp remotes.

Press and hold the up and down arrow buttons until the System menu opens. You will see either "System" or "Rename Remote" at the top of your screen. Follow the steps based on what option you see.

System

Five screenshots showing how to navigate to the System menu on a DualTemp remote.

  1. Start on the System menu. If your remote fell asleep, press and hold the up and down arrows to reopen the System menu.
  2. Select Factory Reset.
  3. Unplug and plug in the DualTemp power cord as directed on the remote screen.
  4. Follow the remote instructions to name your remote.
  5. The fan will turn on when complete.

If you are still seeing an ER message, please contact us for further assistance.

Rename Remote
  1. Take the batteries out of the remote. Keep the batteries nearby.
  2. Unplug and plug in the DualTemp fan power cord.
  3. Within 60 seconds, put the batteries into the remote.
  4. Follow the remote instructions to name your remote. It's normal for the fan to turn on when complete.

If you are still seeing an ER message, please contact us for further assistance.
