Get to Know Your Sleep Number Smart Mattress

Applies to Sleep Number Smart beds purchased 2023 – 2026, including c2, c4, p5, p6, pSE, m7, iLE, i8, & i10, with a Smart Control™ System.

Want to understand how your Sleep Number® Smart mattress works—and how to keep it feeling great? This guide explains the key benefits, how the Smart Control™ System and air chambers work, what to inspect over time, and simple maintenance steps to help protect comfort and performance for the life of your mattress.

View/download your user guide (click or tap).

• Sleep Number smart bed User Guide (2024 - 2026)
• Sleep Number smart bed User Guide (2023)
• Sleep Number smart bed User Guide (2022)

Mattress Overviews

Enjoy next-level comfort, support, and relief with your smart mattress. Personalize your sleep experience with adjustable firmness on each side, then let our Responsive Air® technology respond to your movements and automatically adjust firmness to keep you sleeping comfortably all through the night.

c2 smart bed

Smart effortless sleep starts here. Experience Sleep Number® adjustability and breathable comfort at a great value.

c4 smart bed

Rest easy with breathable, cushioning support. Feel comfortably supported in any sleeping position with a breathable layer that uniquely conforms to you.

p5 smart bed

Soothing pressure relief where you need it most. Stay comfortably cool as plush layers relieve pressure points and keep you supported in any sleeping position.

p6 smart bed

Enhanced cooling and pressure relief for revitalizing sleep. Soothingly cool layers relieve pressure in your shoulders, back and hips while helping you sleep at a comfortable temperature.

pSE smart bed

Sleep just right with cooling comfort. Pressure relieving areas are designed to move excess heat away, so you both stay cool and comfortable.

m7 smart bed

Cooling memory foam with individual adjustability like you’ve never experienced before. You’ll love the only memory foam in the world with the perfect balance of cool, contouring comfort with dynamic support you can adjust on each side, whenever you like.

iLE smart bed

Plush cooling and effortlessly comfortable. Cooling layers provide soothing pressure relief and support for all night comfort.

i8 smart bed

Blissfully cool, for all-night comfort. You simply have to feel it. Our most popular combination of advanced temperature balancing and plush, pressure-relieving support.

i10 smart bed

Irresistibly cool, luxuriously comfortable.  Comfort like you’ve never experienced before. Our most generous pressure-relieving layers draw heat away for the ultimate in temperature balancing.

Compatibility (Bases & Controls)

• Mattress Only
• Bunkie Board
• Integrated Base or Foundation
• Adjustable Base
• FlexFit® 1, 2, & 3
• Sleep Number® App and/or optional Sleep Number® Smart Remote

Get to Know Your Components

Smart Control System

Remote and Bed Control

• Bed Control:
  • Sleep Number app with a compatible smart device, or
  • Sleep Number Smart Remote (sold separately)

Smart Control System Compatibility

• ComfortNext collection, Sleep Number Smart beds, and Climate™ Series beds.
• The Smart Control System controls the functionality of both the mattress and the base (FlexFit® 1, 2, & 3).

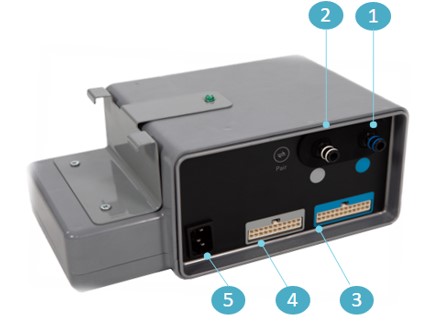

Connections into the pump will be:

• Air hose connection(s) – Provides air to the chambers, so you can adjust firmness and use features like Responsive Air®. Ensure tight connections at both the pump and the air chambers. Loose connections can cause air loss or the pump to run more than normal.
  1. Sleeper right hose (blue)
  2. Sleep left hose (white)
• Wire harness connections (FlexFit® 2 & 3 only) – Provide power and signals to base components via routed cords/cables under the base. Loose or damaged connections can affect base performance.
  3. Left-side wire harness (blue)
  4. Right-side wire harness (white)
• Power cord – Provides power to the bed. Ensure the cord is tightly connected to the pump and plugged into a working outlet.
  5. Power cord

Pump location varies by configuration

• FlexFit® 2 & 3 – Found at the foot of the bed, on the Sleeper Left side.
• Adjustable Base, Foundation, & Mattress (only) – Pump sits on the floor.

Air Chambers

The air chambers hold the air and are inflated/deflated by the pump to adjust the softness or firmness of the bed. Each chamber is connected to the Smart Control™ System by an air hose.

For best performance

• Ensure air chamber connections to the chamber and the pump are secure – If your pump is running constantly (or more than normal), check to make sure no air is escaping around the connection points.
• Trace the hoses to ensure there are no kinks or creases – They will hinder air flow and cause the illusion of your bed losing air.

Connection location varies by configuration

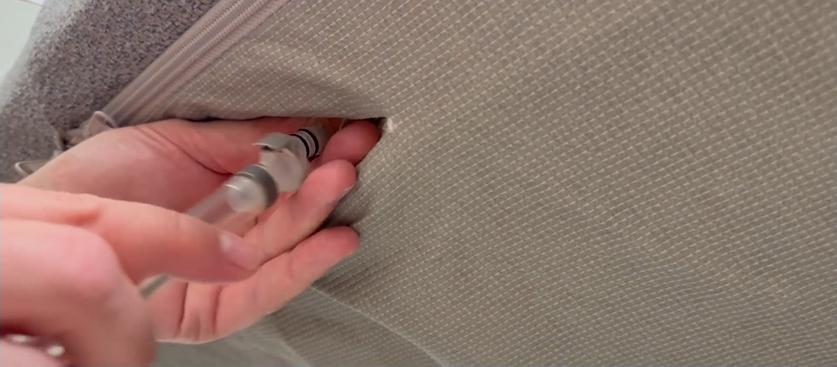

• FlexFit® 1, 2, & 3, Adjustable Base, & Foundation – Hoses route through the hose pass on each side of the deck surface

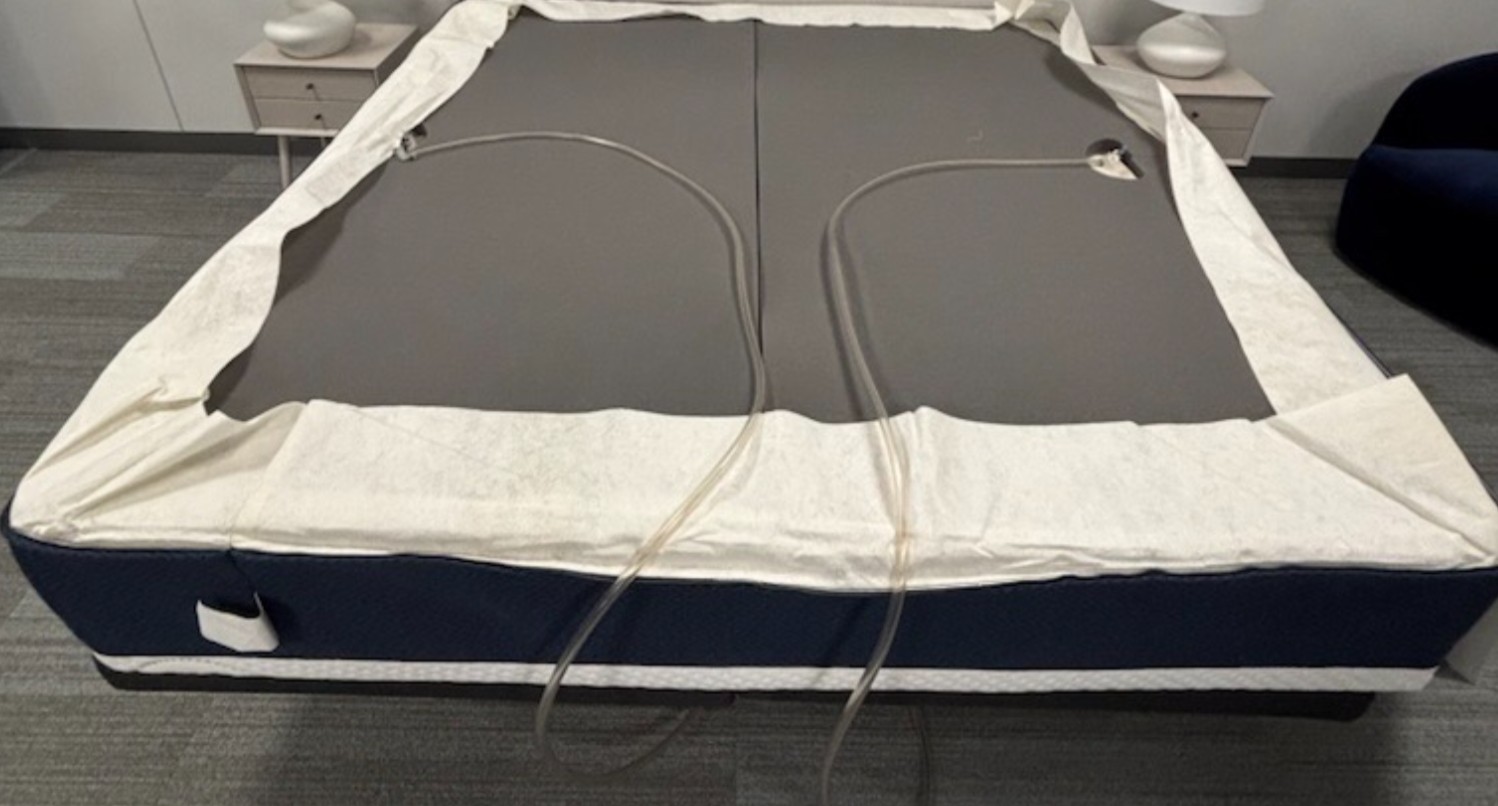

• Mattress (only) – Hoses exit near the head of the bed.

Moving your bed

To get started moving your bed you’ll need white air chamber caps (typically stored in the mattress, base, or provided during delivery). If you do not have white air chamber caps, you can order them online or visit a Sleep Number store near you.

See Sleep Number® Moving Guide for detailed instructions.

Maintenance & Inspection Checklist

• Weekly (or if comfort changes): Confirm your Sleep Number® setting, then check for the pump running constantly or longer than usual.
• Monthly: Inspect air hose connections at the pump and air chambers; reseat any connections that feel loose.
• Monthly: Trace hoses end-to-end to ensure there are no kinks, sharp bends, or pinched areas.
• As needed: Make sure the power cord is firmly connected to the pump and plugged into a working outlet.
• If you have FlexFit® 1, 2, or 3: Check that wire harness connections are fully seated and cords are not damaged.

Contact us if you find any damage or broken parts.

Sleep Number® Smart Mattress FAQs

How do I adjust firmness on a smart mattress?

Adjust firmness by inflating or deflating the air chambers using the Sleep Number® App and/or the optional Sleep Number® Smart Remote.

Why is my pump running constantly (or more than normal)?

In many cases, it is caused by a loose air hose connection at the pump or air chamber. Reseat connections on both ends and check hoses for kinks or pinched sections that can restrict airflow. If this doesn’t resolve the issue, follow air loss troubleshooting.

Why does my bed feel like it is losing air?

A kinked or creased hose can reduce airflow and make the bed feel softer than expected. Trace the hose path, remove bends, and confirm all air hose connections are tight.

Where is the pump located?

Pump location depends on your setup: on FlexFit® 1, 2, & 3 it is at the foot of the bed (Sleeper Left side). With an Adjustable Base, Foundation, or Mattress Only setup, the pump sits on the floor.

What is your return policy?

For details on our return policy visit Returns & Exchanges.
