Smart Bed Headboard Bracket Installation Guide

Applies to: All Sleep Number FlexFit™ Smart Bases and Integrated Bases.



Before you begin

Verify the contents of the headboard bracket assembly kit:

A - (2) Headboard Mounting Brackets

B - (2) Headboard Mounting Tracks

C - (2) Headboard Mounting Flanges

D - (1) Headboard Bracket Mounting Kit




For Integrated Base with Stylish Frame/Legs
  1. Mount (1) headboard mounting bracket (A) to base frame with (2) 1/4-20 x 1-1/2 hex head bolts and nuts. Tighten firmly. (Figure 1)
  2. Slide (1) headboard mounting track (B) into headboard mounting bracket (A) and attach using (2) 1/4-20 x 1/2 carriage bolts and nuts. Loosely tighten (for adjustment purposes.) (Figure 2)
  3. Mount (1) headboard mounting flange (C) to headboard mounting track (B) with (2) 3/8-16 x 3/4 carriage bolts and nuts. Loosely tighten (for adjustment purposes).

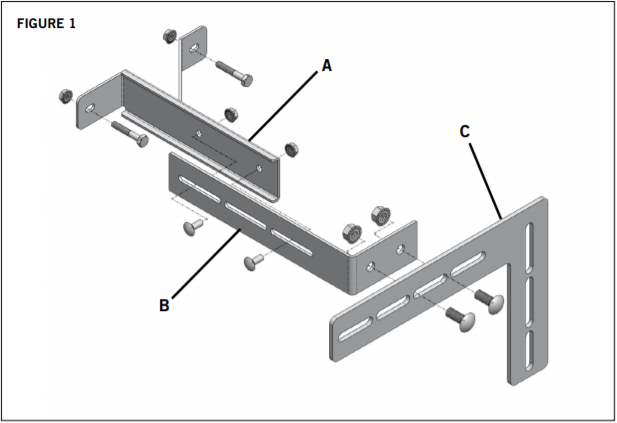

                                              Figure 1 - Attaching and assembly.
  4. Repeat the above steps to attach second assembly to the other side of the base.
  5. Adjust headboard mounting track (B) and headboard mounting flange (C) to line up with mounting points on headboard. Tighten bolts and nuts firmly. (Figure 2 and 3)
  6. Mount headboard (per instructions included with headboard) to complete procedure.

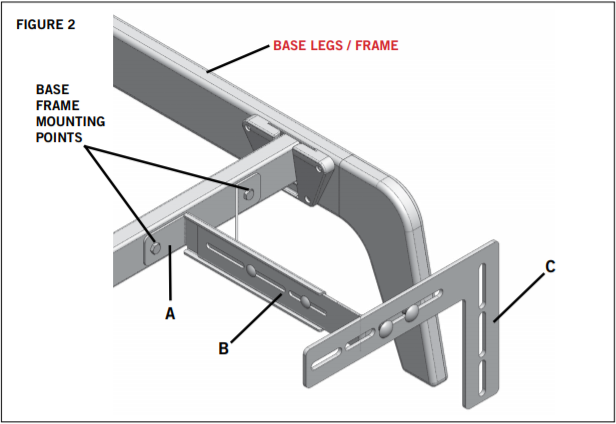

                                 Figure 2 - Mounting points on an Integrated Base.

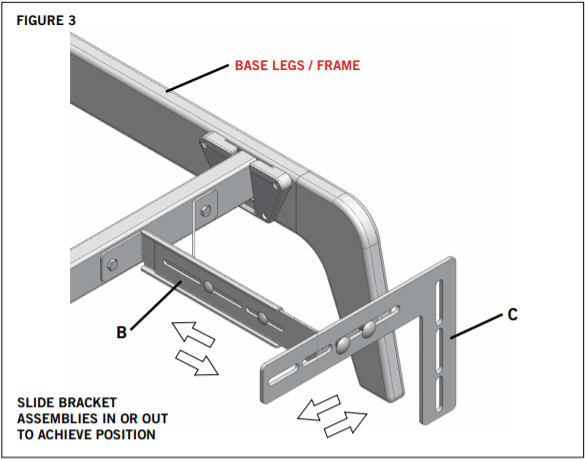

                     Figure 3 - Slide bracket assemblies in or out to achieve position.
For 360 FlexFit smart base
  1. Mount (1) headboard mounting bracket (A) to base frame with (2) 1/4-20 x 1-1/2 hex head bolts and nuts. Tighten firmly. (Figure 1)
  2. Slide (1) headboard mounting track (B) into headboard mounting brackets (A) and attach using (2) 1/4-20 x 1/2 carriage bolts and nuts. Loosely tighten (for adjustment purposes).
  3. Mount (1) headboard mounting flange (C) to headboard mounting track (B) with (2) 3/8-16 x 3/4 carriage bolts and nuts. Loosely tighten (for adjustment purposes).
  4. Repeat the above steps to attach second assembly to the other side of the base.
  5. Adjust headboard mounting track (B) and headboard mounting flange (C) to line up with mounting points on headboard. Tighten bolts and nuts firmly.
  6. Mount headboard (per instructions included with headboard) to complete procedure.
                                   Figure 4 - Mounting points on FlexFit Base.
×
