Sleep Number® ComfortNext & Smart Mattress Assembly and Disassembly

Applies to: Sleep Number® Smart Mattress with strap attachment method, sold after 2022 and all ComfortNext Mattresses.

Learn how to assemble, set up, move, disassemble, and reassemble your Sleep Number® Smart Mattress safely and correctly. This step‑by‑step guide is designed to help ensure proper installation whether you are setting up a new mattress, relocating it within your home, or preparing it for a move

What Is the Smart Mattress?

A Sleep Number® Smart Mattress works with a Smart Control System and the Sleep Number® app, allowing each sleeper to adjust firmness and track sleep insights for a personalized sleep experience.

Before You Start: Important Setup Information

Time and Help Required

• Each process typically takes 30 minutes to 60 minutes
• Two people are recommended for setup and positioning

What this guide covers

• Doorstep Delivery: Assembling Your Smart Mattress
• Disassembling your Smart Mattress for moving
• Reassembling the Smart Mattress after a move
• Compatible Bases
• Common setup questions

Doorstep Delivery: Assembling Your Smart Mattress

Step 1: Unpack and position the mattress

1. Remove the mattress from the outer bag and locate the product label
2. With two people, place the mattress sleep‑surface side down
3. Align the head of the mattress at the foot of the bed frame
4. Remove the mattress bag completely

Note: It is normal to see small slits on the bottom of the cover. That is by design so air hoses can pass through and connect to air chambers when the bed is used with a Sleep Number base.

Step 2: Unzip your mattress (Mattress Only or FlexFit® 3)

Skip this step if you purchased a Foundation/Integrated Base, FlexFit 1 or 2

Mattress Only

Step 1: Open the Mattress Cover

1. Locate the zipper along the mattress edge and unzip fully.
2. Fold the cover in thirds toward the foot of the bed to expose the foam layer.

Step 2: Route the air hoses

1. At the foot of the bed, locate the horizontal slit in the mattress cover.
2. Insert the air hoses one at a time through the slit:
   • Blue hose: Right sleeper (bed‑label side)
   • White hose: Left sleeper
3. Feed enough hose through so each reaches its side without stretching or twisting.

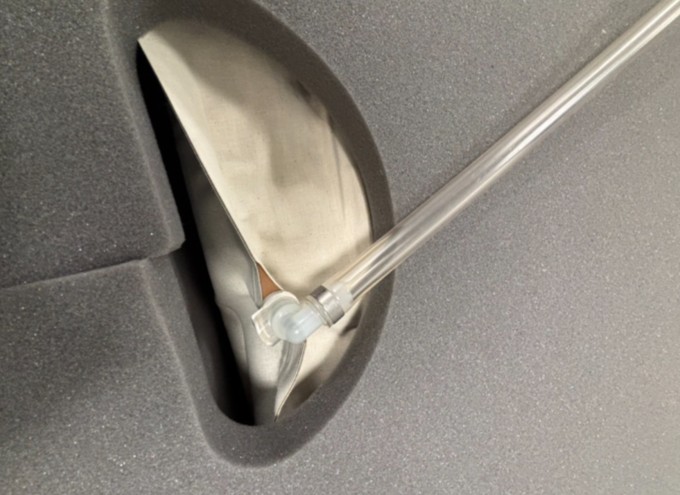

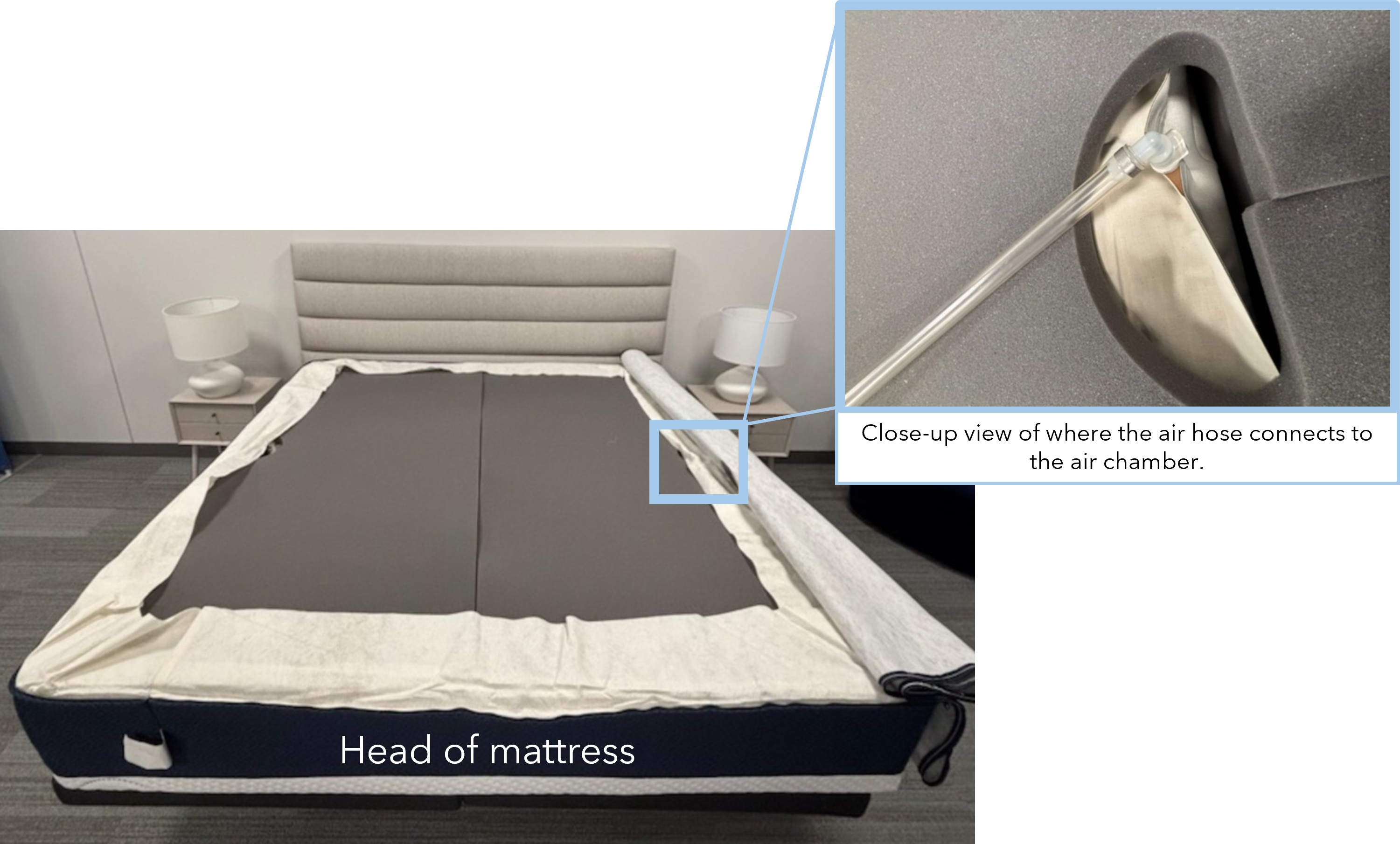

Step 3: Connect the air hoses

1. Remove the white plastic air chamber cap.
2. Firmly connect the hose to the air chamber.
3. Repeat for the opposite side of the bed.

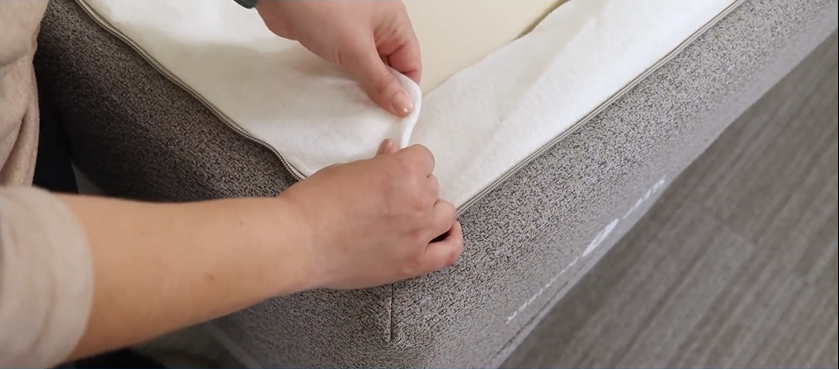

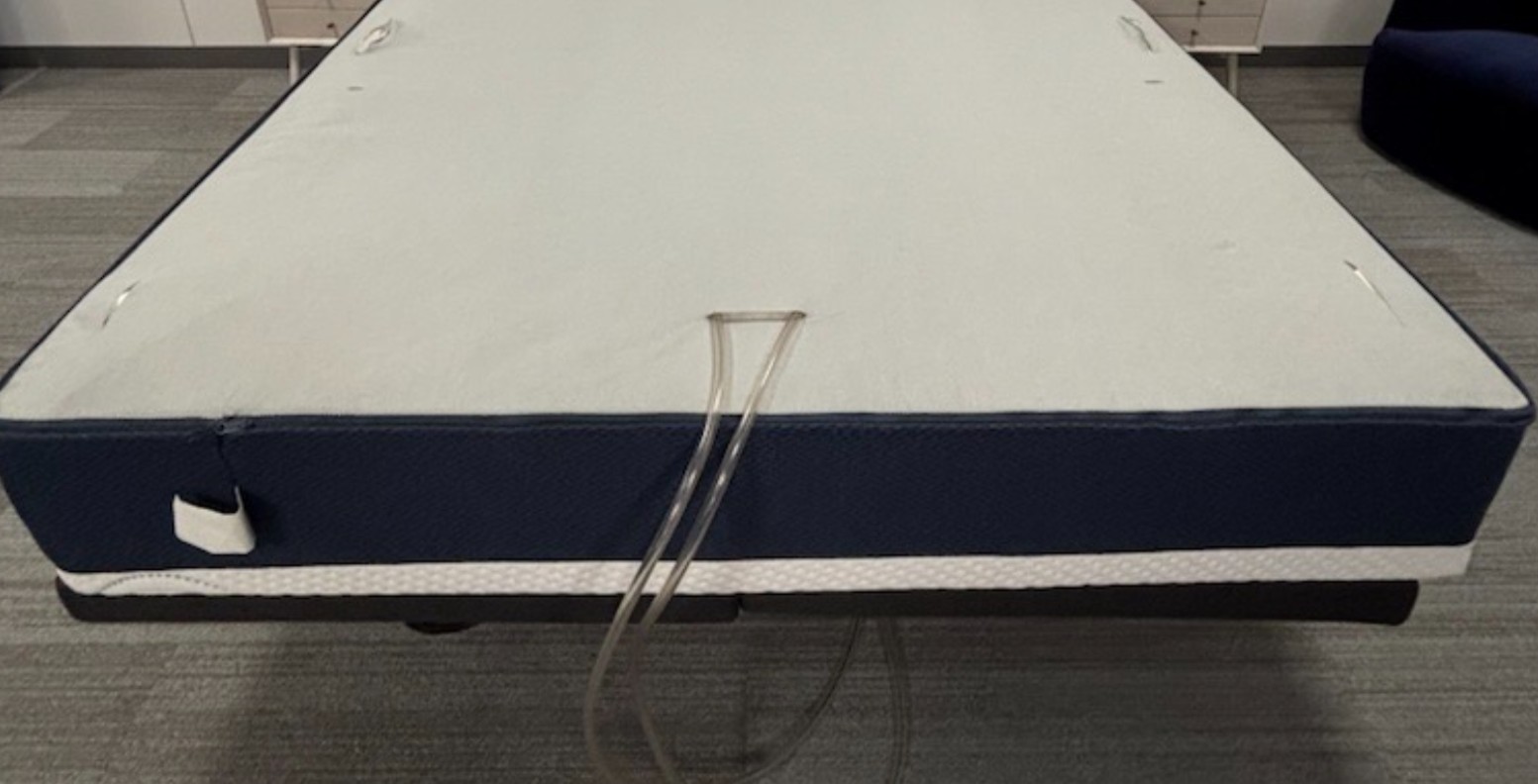

Step 4: Close the Mattress Cover (important safety step)

1. Zip the mattress cover closed.

WARNING:

• To ensure compliance with federal and state flammability requirements, the border wrap must be positioned correctly with the mattress as shown. The border wrap must be positioned over the foam/air chamber and remain flat during zipping.

FlexFit 3

1. Unzip the mattress cover

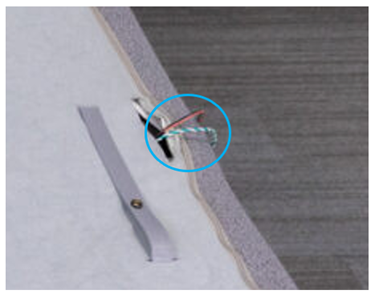

2. Route the foot‑warming wires through the designated cutout
3. Once routed, zip the cover closed

Step 3: Identify and insert mattress straps (Adjustable Bases Only)

Skip this step if you did not purchase an Adjustable or FlexFit Base

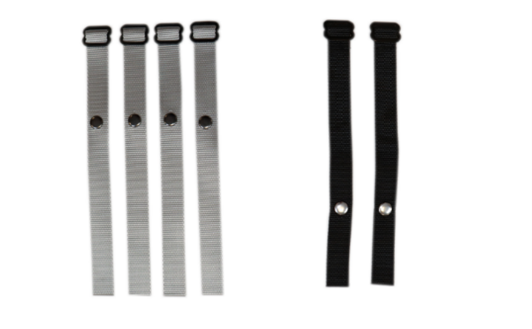

Strap Types

• Four light gray straps: Used at the hip and foot of the bed
• Two black straps: Included with FlexTop™ or Split King models

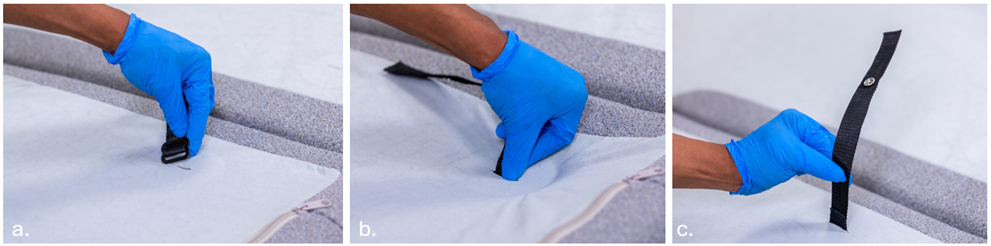

How to Insert the Straps

a. Locate the slits in the mattress cover

b. Insert the entire metal tip of the strap through the slit and reinforcement patch

c. Tug gently to confirm the strap is fully expanded and secure

Strap Orientation

• Gray straps: Laid toward the foot of the bed, button opening facing up
• Black straps: Laid over the gap in the bed, button opening facing up

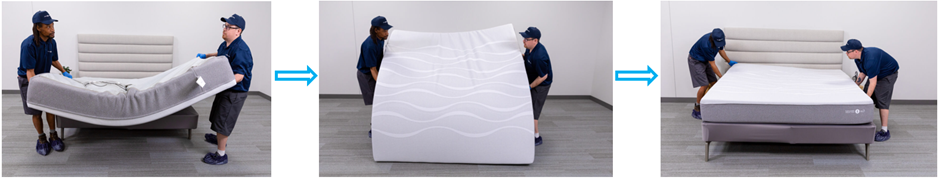

Step 4: Flip and center the mattress

• Two people are required
• Carefully flip the mattress and center it on the base

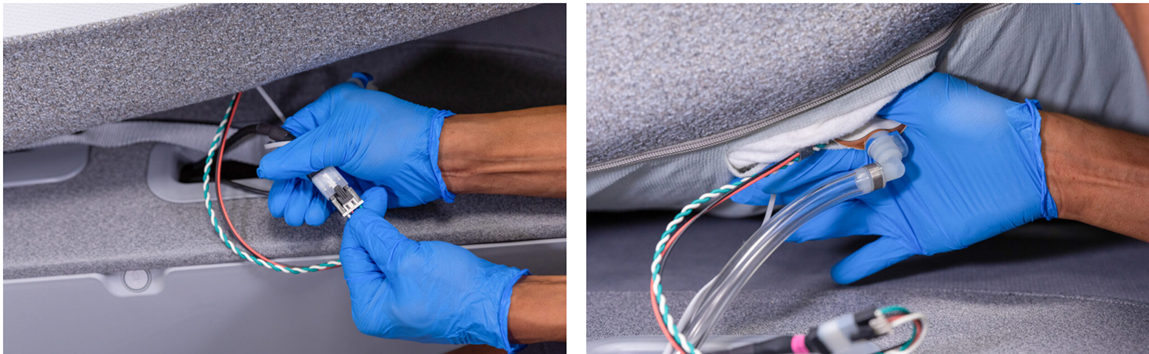

Step 5: Connect air hoses and optional features (Adjustable Bases Only)

Skip this step if you did not purchase an adjustable or FlexFit Base

1. Finish attaching the mattress at both hip locations
2. Remove the white air chamber cap
3. Press the air hose in until you hear or feel a click
4. If applicable, connect the foot‑warming wire

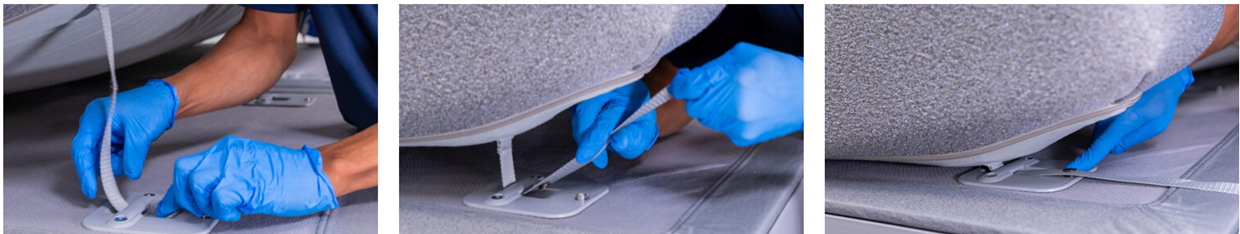

Step 6: Secure the gray straps (Adjustable Bases Only)

Skip this step if you do not have a FlexTop or Split King

1. Connect the straps at the hip (one per side)
2. Then connect the straps at the foot (two total)
3. Split King models use four foot straps
4. Feed each strap under the bar and pull until the button aligns
5. Press down until the button snaps into place

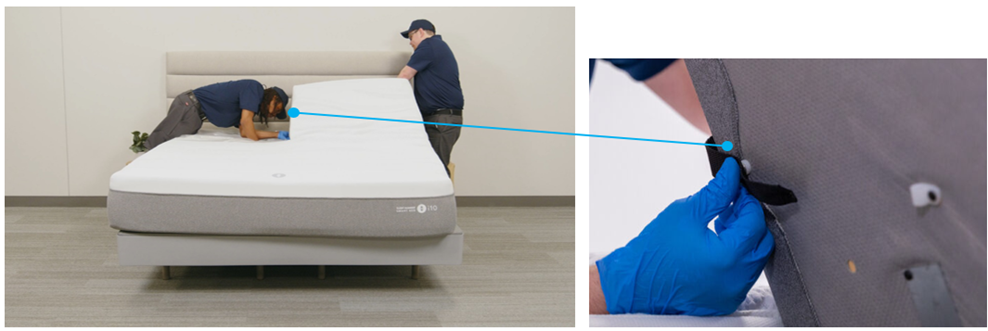

Step 7: Secure the black straps (FlexTop™ and Split King Only)

Skip this step if you do not have a FlexTop or Split King

1. Stand on either side of the bed
2. One person lifts a decking panel to access the snap receiver
3. Pull the black strap tightly and snap it into place
4. Repeat on the opposite side

Step 8: Connect the Smart Control System (No Base Only)

Skip this step if you have a FlexTop or Split King

1. Place the Smart Control System in its desired location.
2. Connect:
   • Right sleeper hose (blue)
   • Left sleeper hose (white)
   • Power cord (with small green wire)
3. Plug into a nearby electrical outlet.
4. Wait until all indicator lights turn on.

Step 9: Final Inspection

• Check that all straps, hoses, and connections are secure
• Confirm the mattress is centered and properly attached

Step 10: Connect your bed

• Get your bed online
• Setup your (optional) smart remote

Moving Your Smart Mattress: How to Disassemble

Getting Your Mattress Ready to Move

Watch the video for easy step-by-step help or check out the written instructions below to get started.

Step 1: Prepare the Mattress for Moving

1. Inflate both sides of the mattress to 100
2. Disconnect the air hoses and attach the white closure caps
3. If equipped, unplug foot‑warming connections near the hose area

Step 2: Detach the Mattress

• Strap system:
  • Unclip gray straps at the hips (one per side) and foot (two total)
  • Split King models have four foot straps
  • FlexTop™ and Split King models also require unclipping black straps at the head of the bed
• Place the mattress in a protective bag for transport
• Disconnect and box the pump separately

Moving Your Smart Mattress: How to Reassemble

Watch the video for easy step-by-step help or check out the written instructions below to get started.

1. Position the mattress on the base
2. Feed air hoses and foot‑warming wires (if applicable) through the base opening at the hip
3. Remove white air chamber caps and reconnect hoses until they click
4. Reconnect foot‑warming connections if applicable

Reattach the Mattress to the Base

• Strap Attach System:
  • Reconnect gray straps at the hips first, then at the foot
  • Split King and FlexTop™ models use four foot straps
  • Feed straps under the bar and snap buttons into place
  • For FlexTop™ or Split King models, lift decking panels and reconnect black straps
• Plug the power cord into an outlet
• If a connectivity error appears on the remote, confirm the pump is properly connected and complete a factory reset if needed

Compatible Base Instructions

This smart mattress is designed to work with compatible bases, including:

• Smart Integrated Base
• FlexFit® Adjustable Base
• Adjustable Base

Always follow base-specific instructions in addition to this guide for best results.

Frequently Asked Questions

How long does it take to assemble a Sleep Number® Smart Mattress?

Most setups take 60 minutes with two people.

Do I need special tools?

No. All connections use built‑in straps, snaps, and hose fittings.

Can I move a Sleep Number® Smart Mattress myself?

Two people are recommended for safe handling during disassembly and transport.
